DALI-2 USB

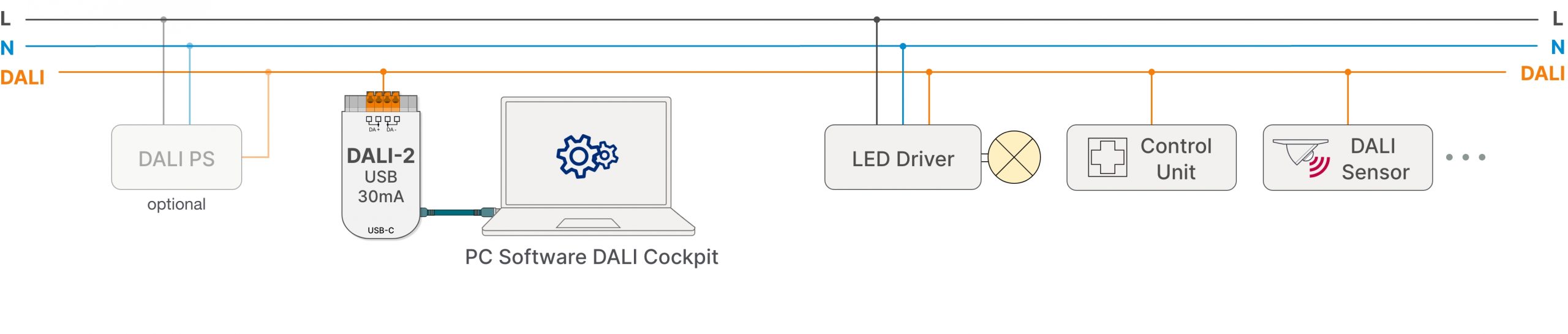

The DALI-2 USB is used as interface between the DALI Cockpit PC Software and the devices on the DALI bus. It enables the addressing and configuration of DALI installations. Standard DALI protocol, DALI-2 protocol and various extended DALI protocols are supported. Compact device with integrated 30mA bus power supply.

DALI-2 Web-01

DALI-2 USB

The DALI-2 USB is used as interface between the DALI Cockpit PC Software and the devices on the DALI bus. It enables the addressing and configuration of DALI installations. Standard DALI protocol, DALI-2 protocol and various extended DALI protocols are supported. Compact device with integrated 30mA bus power supply.

DALI-2 Web-01

Product types

Art. Nr.: 24138215-30

DALI-2 USB 30mA – open datasheet

Add to request

Specifications

Technical Data
ambient temperature
-20°C bis +75°C
protection degree housing / terminals
IP40 / IP20
mounting
Installation box, integration in class II devices
Function
device type
interface
versions
compact housing with integrated bus power supply (30mA)
Electrical Data
USB Connection
USB C
typ. current consumption USB
40mA
DALI Connection
DA+, DA-
DALI supply current (guaranteed /max)
30mA / 50mA
Dimensions
compact housing
59mmx33mmx15mm
colour
grey
connection type
spring terminal connector
USB connector & included USB cable
USB C – USB C

Downloads & Links

Links

DALI-2 certification

Downloads

Datasheet - D0114 DALI-2 USB (PDF - 458.85 kB)
CE – DALI USB (PDF - 70.63 kB)
LUBA protocol (PDF - 344.75 kB)
