DALI DT8 to DT6

DALI interface module for converting DT8-Tc control commands into DT6 control signals. The module allows dimming and adjustment of colour temperature via DT8 commands.
Also suitable for lights with two DALI DT6 operating devices. Factory setting: separate outputs for cold-white and warm-white channel.

DALI DT8 to DT6
DALI DT8 to DT6

DALI DT8 to DT6

DALI interface module for converting DT8-Tc control commands into DT6 control signals. The module allows dimming and adjustment of colour temperature via DT8 commands.
Also suitable for lights with two DALI DT6 operating devices. Factory setting: separate outputs for cold-white and warm-white channel.

Product types

Art. Nr.: 89453859

DALI DT8 to DT6 – open datasheet

Add to request

Specifications

Technical Data
ambient temperature
-20°C to +60°C
protection class
IP20
connection wire cross section
max. 1.5mm²
mounting
back box
Function
device type
signal converter
power-on behaviour
configurable via DALI
configurable via DALI Cockpit
yes
Electrical Data
current consumption
4,5mA + current consumption subcircuit
control input
DALI
output
2x DALI
number of DALI addresses
1 (DT8)
Dimensions
length
40mm
width
28mm
height
14mm
colour
grey

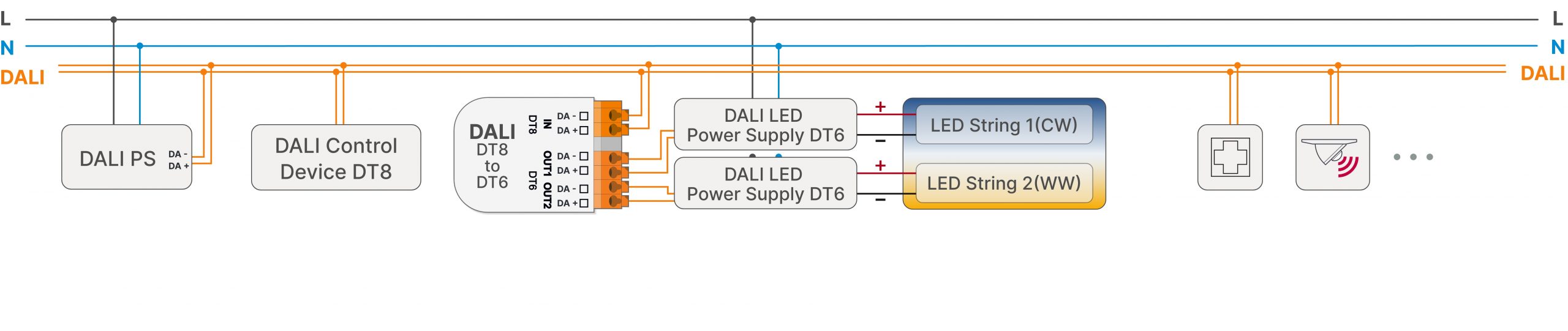

Example Installation
