DALI PD 300W

Phase dimmer with DALI input to control dimmable 230V luminaires in a DALI system. Available for leading edge, trailing edge or as universal device with automatic load detection. Available as compact 25W version or as 300W version. From Firmware 3.5 onwards an additional operating mode is supported: DALI controlled switching.

DALI PD 300W

Phase dimmer with DALI input to control dimmable 230V luminaires in a DALI system. Available for leading edge, trailing edge or as universal device with automatic load detection. Available as compact 25W version or as 300W version. From Firmware 3.5 onwards an additional operating mode is supported: DALI controlled switching.

Product types

Art. Nr.: 86458618-300

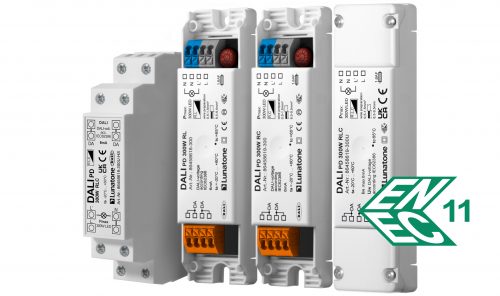

DALI PD 10-300W leading edge phase cut dimmer R,L with ENEC – open datasheet

Add to request
Art. Nr.: 86458619-300

DALI PD 10-300W trailing edge phase cut dimmer R,C with ENEC – open datasheet

Add to request
Art. Nr.: 86458619-300U

DALI PD 10-300W universal dimmer R,L,C with ENEC – open datasheet

Add to request
Art. Nr.: 86458619-300U-HS

DALI PD 10-300W leading/trailing edge R,L,C DIN Rail – open datasheet

Add to request

Specifications

Technical Data
ambient temperature
-20°C to +60°C
protection class
IP20
connection wire cross section
max. 2.5mm²
mounting
remote ceiling / DIN rail
Function
device type
phase dimmer
configurable via DALI Cockpit
yes
Electrical Data
supply
from DALI bus
current consumption
6mA
input
DALI
number of DALI addresses
1
mains voltage
230V AC
trailing/leading edge phase angle
0-180°
load range
10-300W
max. output current
1.45A eff AC
Dimensions
length
120mm (rc) / 98mm (dr)
width
30mm (rc) / 17.5mm (dr)
height
22mm (rc) / 56mm (dr)
colour
grey

Downloads & Links

Downloads

Datasheet - D0033 DALI PD (PDF - 646.43 kB)
CE – DALI PD300 (PDF - 428.99 kB)
ENEC - DALI PD300 (PDF - 586.04 kB)
CE – DALI PD300 HS (Art.Nr.86458619-300U-HS) (PDF - 86.97 kB)
CB - DALI PD300 (PDF - 331.51 kB)

Additional / alternative accessories

Strain relief for cables with thick sheathing

suitable for 30mm compact housing
