wDALI-2 BT5 CW-WW LED Dimmer CC DT8
Wireless Connection of DALI-2 LED Dimmer
via wDALI-2 BT5 Bridge
This wDALI-2 CW-WW Dimmer module is used to wirelessly control tuneable white luminaries via one DALI address (DALI DT8). The LED ballasts can be switched, dimmed and adjusted in colour temperature by using DALI commands. The device supports Operating Mode DT8, Operating Mode Balance&Dim, Operating Mode Dim2Warm.
Wireless control is achieved through a transmitter unit wDALI-2 BT5 Bridge and the receiver module wDALI-2 CW-WW Dimmer.
The transmitter is connected to the DALI line, while the receiver is powered by 12-48V DC.
The wireless range depends on structural conditions: 8–12m (up to 150 m in open field).
wDALI-2 BT5 CW-WW LED Dimmer CC DT8
Wireless Connection of DALI-2 LED Dimmer
via wDALI-2 BT5 Bridge
This wDALI-2 CW-WW Dimmer module is used to wirelessly control tuneable white luminaries via one DALI address (DALI DT8). The LED ballasts can be switched, dimmed and adjusted in colour temperature by using DALI commands. The device supports Operating Mode DT8, Operating Mode Balance&Dim, Operating Mode Dim2Warm.
Wireless control is achieved through a transmitter unit wDALI-2 BT5 Bridge and the receiver module wDALI-2 CW-WW Dimmer.
The transmitter is connected to the DALI line, while the receiver is powered by 12-48V DC.
The wireless range depends on structural conditions: 8–12m (up to 150 m in open field).
Product types
Specifications

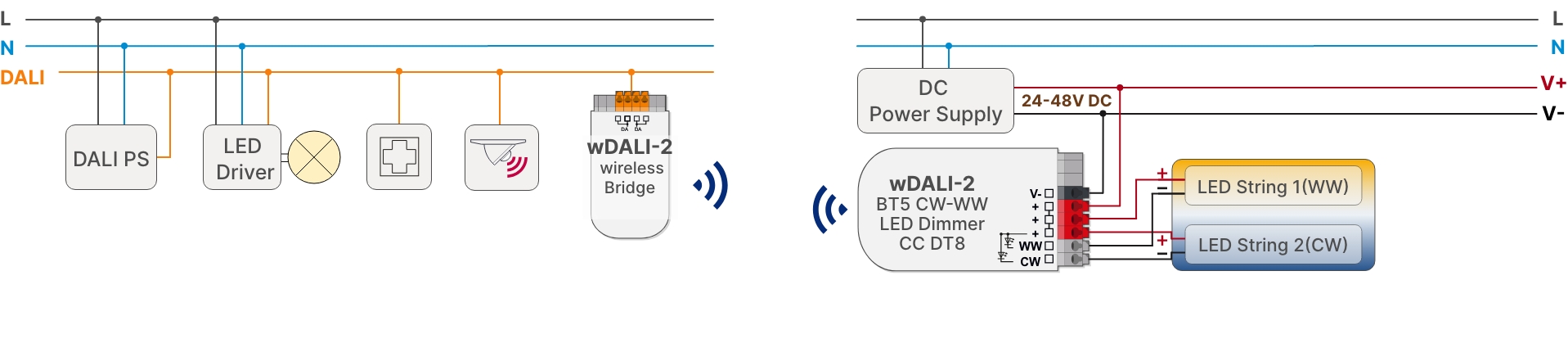

Example Installation
